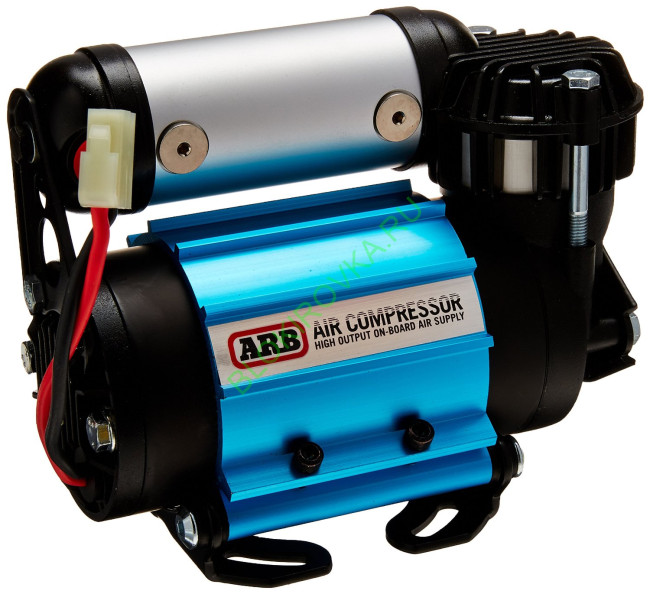

Компрессор ARB CKMA12 12В высокопроизводительный

Компрессор ARB CKMA12 12В высокопроизводительный

CKMA12 - Permanently mounted, this compressor is installed into your truck and includes a full wiring loom with Air Locker solenoid plug in contacts, mounting hardware with reinforcing bracket and quality compressor isolating switch. This compressor can be used to activate Air Lockers, and can perform other functions such as inflating camping gear with an optional inflation kit sold separately.

Есть в наличии в Москве и во Владивостоке!

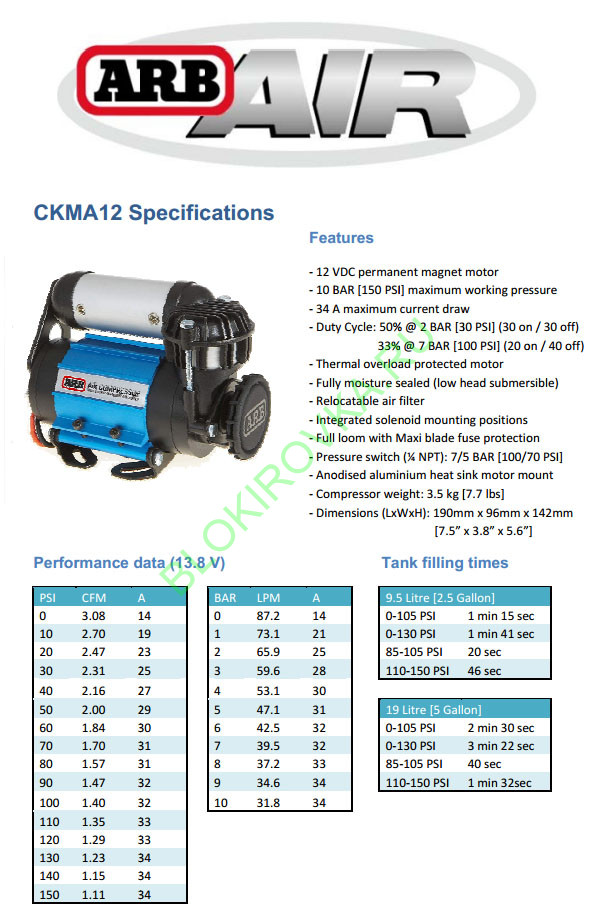

Технические характеристики:

• Voltage: 12 Volts
• Current Draw No Load: 13 Amps
• Current Draw Under Load: 22.9 Amps
• Air Flow No Load: 2.65 CFM
• Air Flow Under Load: 2.18 CFM
• Weight: 10 Lbs
• Duty Cycle: 50%
• Size: 5.6" Height, 7.5" Length, 3.8" Width

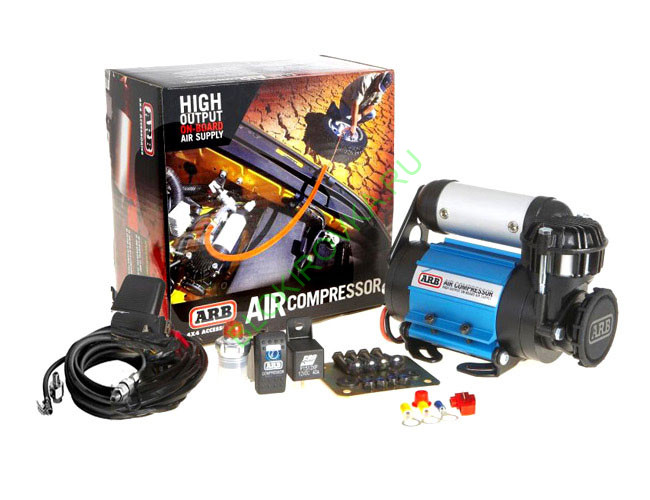

Комплектация:

• Air Locker Solenoid Mounting Manifold
• Pressure Cutout Switch
• Air Filter Equipped
• Thermal Overload Protected Motor
• Automotive current load protection in loom

Capable of running both front & rear air lockers simultaneously

Permanently mounted, this water, dust, heat and shock resistant compressor can be used to activate Air Lockers and will perform a number of other functions with an optional tyre inflation kit sold separately.

Designed to withstand harsh environments, the CKMA12 is installed in your vehicle and includes a full wiring harness with relay, multi position mounting bracket and pressure switch.

Особенности:

• High flow, compact 12V DC air compressor
• Designed for Air Locker use, inflating tyres and other equipment
• Sealed for moisture and dust resistance
• Hard anodised cylinder bore for reduced friction
• Teflon impregnated carbon fibre piston seal for maximum trouble free life
• Anodised mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees
• Quality components for quiet operation and extra long life
• Constructed entirely of lightweight, high strength engineering grade materials
• Over-pressure safety valve equipped
• Motor is internally thermal protected against extreme temperature damage
• Full wiring loom included for simplified installation and plug-in connectivity to Air Locker control solenoids
• Heavy duty maxi-fuse equipped for professional in-line circuit protection
• Optional tyre inflation hose kit available separately
• Available in either a 12V or 24V configuration

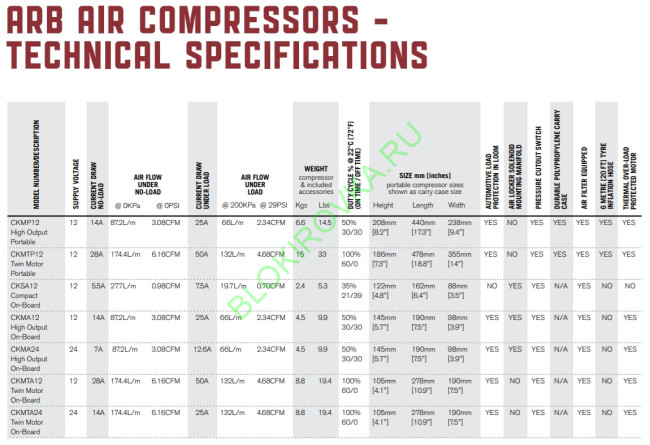

Скачать спецификации всей линейки компрессоров можно по ссылке

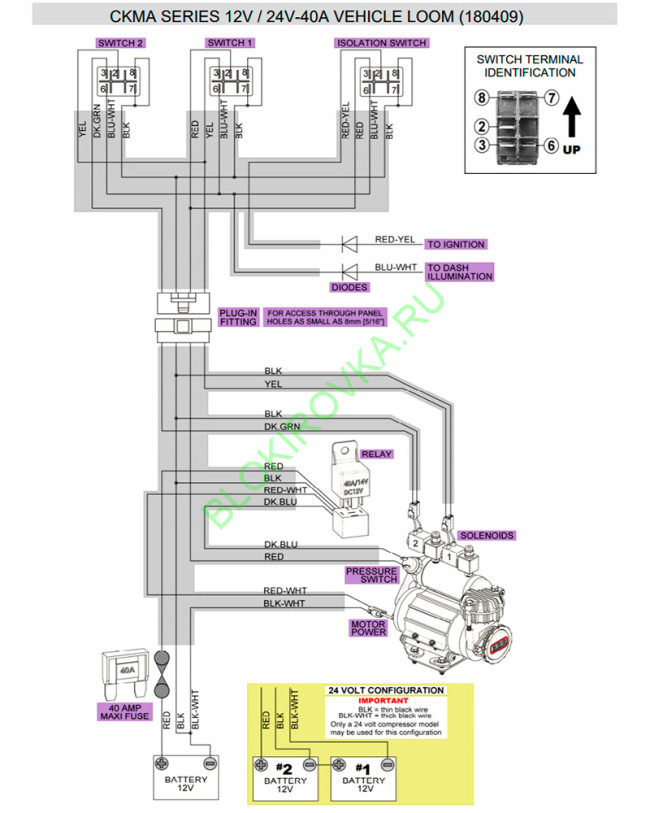

Схема устройства и подключения компрессора ARB CKMA12

Обратите внимание, чтобы пользоваться подкачкой, необходимо установить тройник, который идет в комплекте с шлангом подкачки колес ARB 171302 PUKT, в который вкручивается быстроразъем для подкачки и клапан ограничения давления.
