Фланец Trail-Gear 304110-1-KIT для Toyota Land Cruiser 8" и 9.5" (29 шлицов, 4 сверловки) с сальником и гайкой

Фланец Trail-Gear 304110-1-KIT для Toyota Land Cruiser 8" и 9.5" с сальником, гайкой и маслоотражающей шайбой

29-Spline Differential Hardware Kit

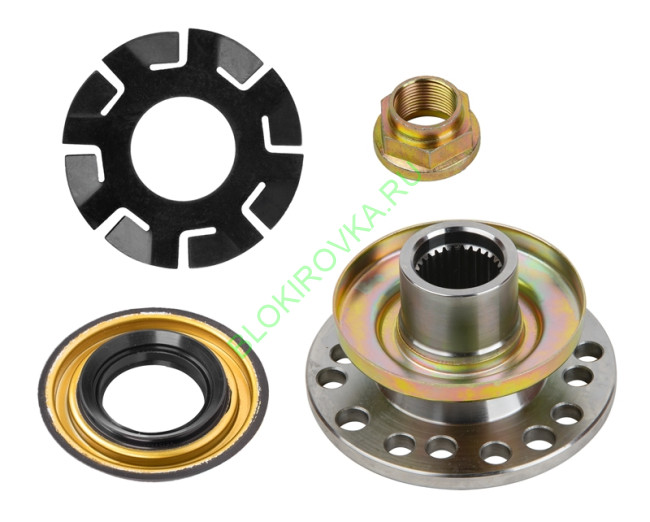

The 29-spline Differential Hardware kit contains all the 29-spline hardware needed to use 29-spline Ring & Pinon gears in your Toyota differential. This kit includes our forged chromoly 29-spline Quadruple-drilled flange with preinstalled dust shield, 29-spline Trail-Safe Pinion Seal, and 29-spline pinion nut. We also include an oil slinger for high-pinion applications. Fits 8” Toyota differentials with 29-spline pinion gears (Ring & Pinion gears sold separately).

Included bolt patterns: 66mm x 66mm x 11mm, 60mm x 60mm x 10mm, 60mm x 68.3mm x 10mm, & 61.5mm x 70mm x 10mm.

Specifications:

• New hardware required to upgrade your 8” Toyota differential for 29-spline Ring & Pinion gears.
• Includes forged chromoly 29-spline Quadruple-drilled flange with dust shield, 29-spline Trail-Safe Pinion Seal, and 29-spline pinion nut.
• Includes oil slinger for high-pinion applications.

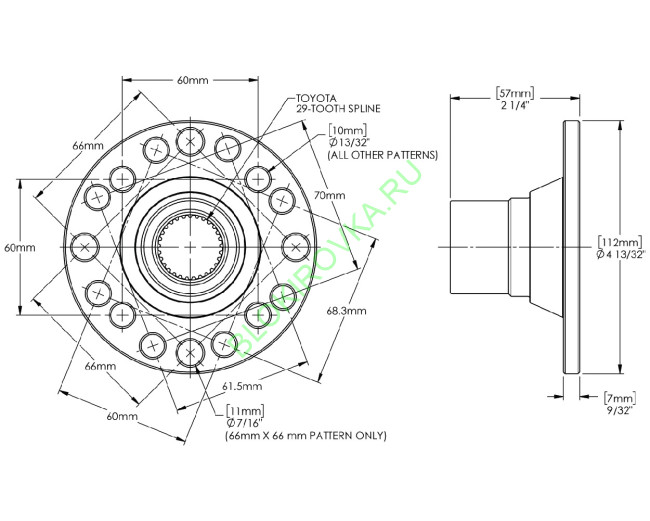

• Flange is Quadruple drilled with the most popular Pickup/4Runner & Tacoma Patterns:

  • 66mm x 66mm x 11mm (Tacoma)
  • 60mm x 60mm x 10mm (Pickup/4Runner and TG Heavy Duty Driveline)
  • 60mm x 68.3mm x 10mm
  • 61.5mm x 70mm x 10mm
• Dust shield pre-installed onto flange
• Requires 29-spline R&P set (sold separately)

Сверловка 4-х размеров: 66 x 66 мм диаметром отверстий 10 мм и 60 x 60 мм, 60 x 68.3 мм, 61.5 x 70 мм диаметром отверстий 10 мм под болты кардана.
